BARRA 800R Electric Stealth Drive

The BARRA 800R is the flagship of electric marine propulsion, delivering 800hp-class performance through a quad-motor Stealth Drive system. Designed for high-performance vessels, it replaces complex multi-engine setups with a single, fully integrated propulsion unit.

The system utilises 4 × 160kW axial flux motors operating in parallel, producing approximately 1760Nm of combined torque. To manage this immense output, the drive features twin 19” contra-rotating propellers, ensuring maximum thrust transfer, reduced cavitation, and stable high-speed performance.

Compared to the 200R, the 800R featuares quad motors and a 200mm taller drive profile (450kg weight), resulting in a performance system capable of sustained high-power operation.

Stealth Drive Architecture

  • Quad motor system (4 × 160kW)
  • ~1760Nm combined torque output
  • Twin 19” contra-rotating props for maximum efficiency
  • Fully enclosed under swim platform
  • Up to 60° tilt for maintenance and access

Performance & Control

  • Extreme acceleration and high-speed capability
  • Cruise control & no wake mode
  • Anchor mode with GPS position hold
  • Bluetooth remote manoeuvring
  • Cockpit control system

Premium Digital Helm (Console Package)

  • High-performance throttle and steering system
  • Dual 8” touchscreen displays
    • Engine management
    • Integrated infotainment system
  • Bluetooth 5.3 lossless audio + DAB+
  • 2.1 channel 300W amplifier with DSP tuning

System Integration

  • High-voltage battery architecture (minimum 4 packs)
  • Integrated DC-DC for onboard systems
  • CCS2 charging compatibility

The BARRA 800R delivers uncompromising electric performance—combining extreme power, clean design, and advanced digital control in a single, elegant propulsion system.

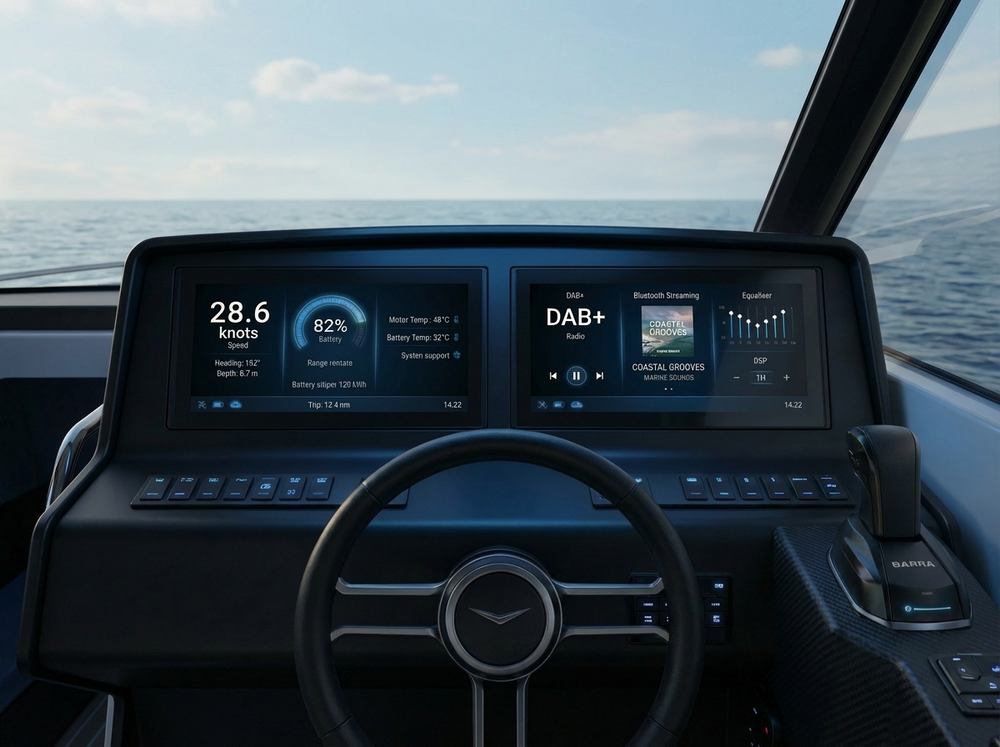

Premium Console Package

Premium digital helm featuring drive-by-wire steering and throttle for precise, responsive control without mechanical linkages. Includes dual 8” touchscreens displaying speed, power, SOC, range, and drive modes, alongside integrated infotainment with Bluetooth 5.3 lossless streaming, DAB+, and a 300W DSP-tuned 2.1 amplifier. Digital steering enables smooth ±90° control, enhanced low-speed manoeuvrability, and seamless integration with cruise control, no wake mode, and GPS anchor hold - delivering a refined, intuitive driving experience.

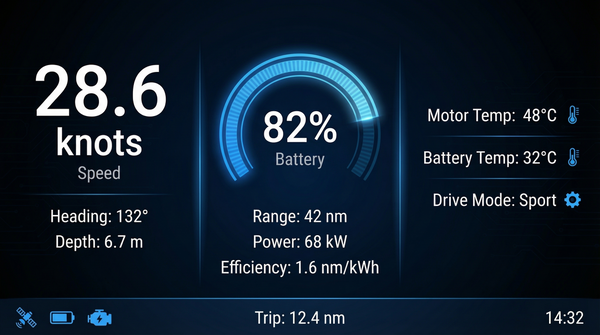

High Definition

Real-time performance display showing speed, range, power, and efficiency

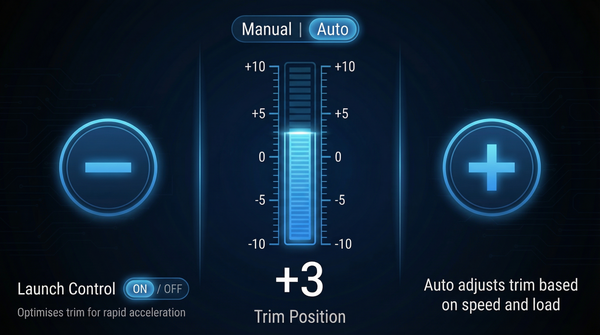

Trim/Tilt

Smart trim control with auto mode and launch optimisation for performance

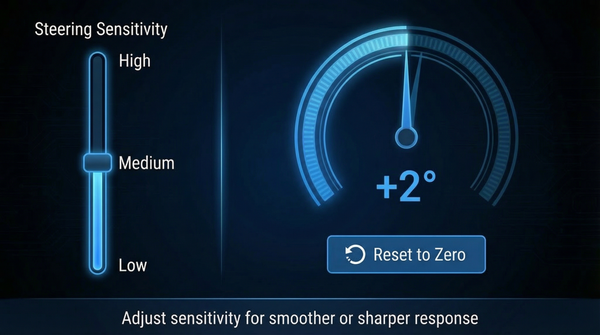

Steer by Wire

Adjustable digital steering sensitivity for precise, smooth or responsive handling

Frequently Asked
Questions

What boats is the BARRA system compatible with?

The BARRA system is designed to suit a wide range of vessels. Compatibility depends on hull type, weight, and intended use.

How does performance compare to traditional petrol outboards?

Electric drive delivers instant torque and smooth acceleration. Real-world performance varies depending on setup and operating conditions.

How is the system charged?

Charging options depend on the model and configuration. Systems can support onboard charging and external power sources.

What maintenance is required?

Electric systems significantly reduce maintenance compared to petrol engines. Service requirements will depend on usage and environment.

Can the system be upgraded or expanded over time?

You can install more batteries to increase range, the same way you add more fuel tank capacity.
